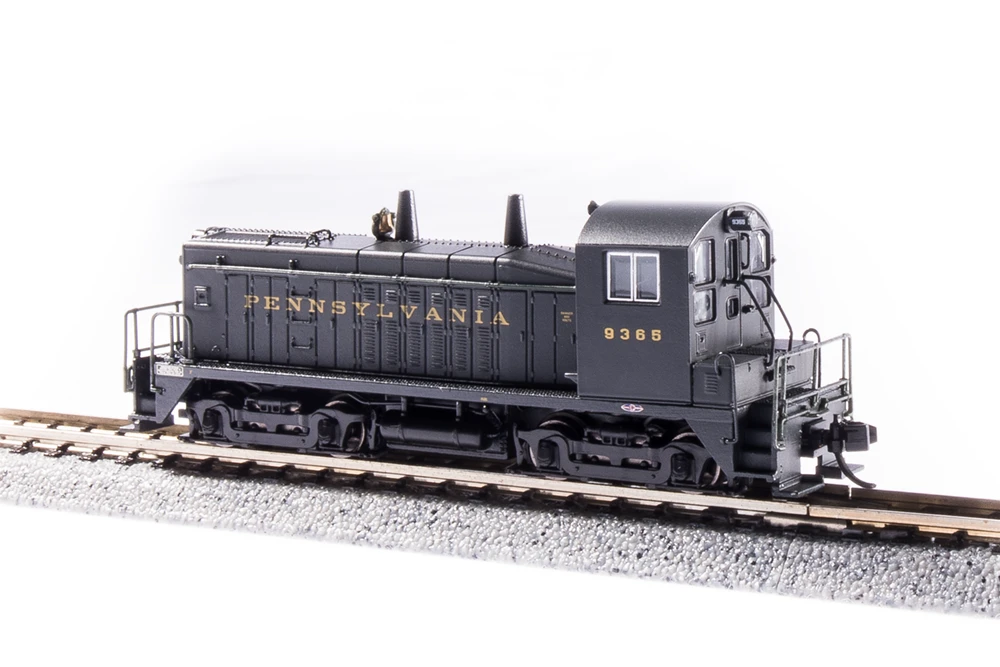

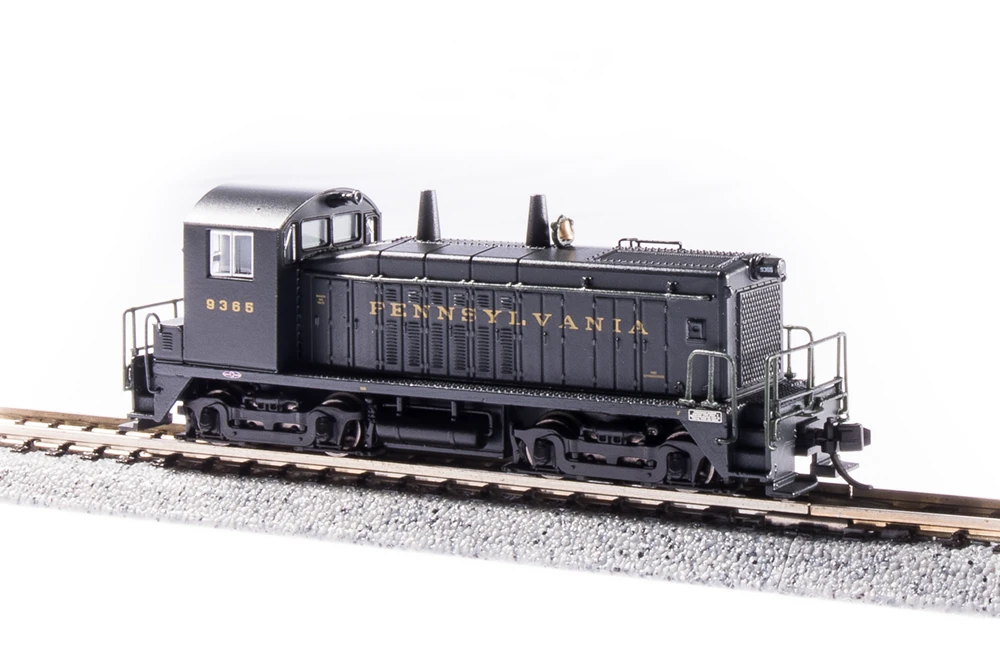

Broadway Limited Imports N 3940 EMD SW7, Pennsylvania Railroad #9365

PARAGON4 SOUND/DC/DCC EQUIPPED
Brunswick Green

The EMD SW7 is a 1,200 horsepower diesel switcher locomotive built by General Motors Electro-Motive Division between October 1949 and January 1951. At 1,200 horsepower, the SW7 replaced the 1,000 horsepower NW2 in the EMD catalog. The SW7 was reasonably priced and was widely popular, being found on over 50 railroads and numerous industries (where some can still be found in use today). The SW7 was 44 feet long and equipped with the standard B-B truck arrangement. Typical distinguishing features of the SW7 switchers, compared to the NW2s, are a full-height radiator grill on the front (Phase 1), dual versus single headlights and rear lights, and the tops of the front cab windows are straight, rather than curved like the NW2’s.

In this production, we are offering models in eight prototypical paint schemes and also one Unpainted version. Each model is equipped with the Paragon4 DC/DCC Sound and Control System.

Industry-leading Model Features:
Paragon4 Sound and Control System featuring ROLLING THUNDER
Integral Dual-Mode Decoder with Back EMF for Superb Slow Speed Operation in DC and DCC
Precision Drive Mechanism Engineered for Heavy Towing and Smooth Slow Speed Operation
Defaulted to Switcher Mode for Better Slow Speed Control
All Wheel Electrical Pick-up
Die Cast Body with Die Cast Chassis for Maximum Tractive Effort
Premium Caliber Painting
Prototypically Accurate Paint Schemes and Road Numbers
Many Separately Applied Details such as Handrails, Grab Irons, Smokestacks, Horn, and Bell
Dual and Single Headlight Options Accurate for Each Paint Scheme
Prototypical Light Operation
Prototypically Accurate Sounds for the EMD NW2 Switchers
Metal Kadee-compatible Couplers (2)
Will Operate on Code 55, Code 70, and Code 80 Rail
Minimum Operating Radius: 9″

Broadway Limited Imports is proud to introduce Paragon4: The new benchmark for premium HO sound-equipped locomotives. These DC and DCC-Sound equipped locomotives feature the ALL-NEW Paragon4 sound and control system. Each Paragon4 locomotive comes with BLI’s own integral DCC Decoder factory installed. Paragon4 locomotives offer Dual Mode DC and DCC operation with superb back EMF motor control, improved DC motor control, built-in capacitor pack for more reliable electrical pick-up, industry best on-board sound with Rolling Thunder functionality, Pro Lighting Mode for prototypical light control, Switcher model for precise low speed control, recordable DCC operation for automated playback, and the same excellent detail level as Broadway Limited’s Paragon3 Series models.

Paragon4 Sound and Control System Features:
Operates in DC and DCC with improved DC speed control (use DCMaster for DC Sound)
Built-In extra capacitance to navigate imperfect track
Pro Lighting Mode offers individual control of all lights on model
Switcher Mode for precise low speed control
Record and Play Operation – Records and plays back sounds and movements once or repeatedly for automatic operation
High Resolution Audio
Quillable Horn for various whistle lengths and patterns
Choice of 3 selectable Horns
Alternate Whistle/Horn where applicable for locomotive with air horn and steam whistle – both the main whistle and alternate can be easily played
Adjustable bell ringing interval for faster or slower bell
Numerous user-mappable functions with available keys
Multiple realistic passenger and crew sounds play on command
Grade Crossing Automatic Signal
Automatic Forward/Reverse Signal
Prime Mover sound intensity varies with load
Individually adjustable sound volumes for each effect
EZ Reset Button for quick return to factory default settings
