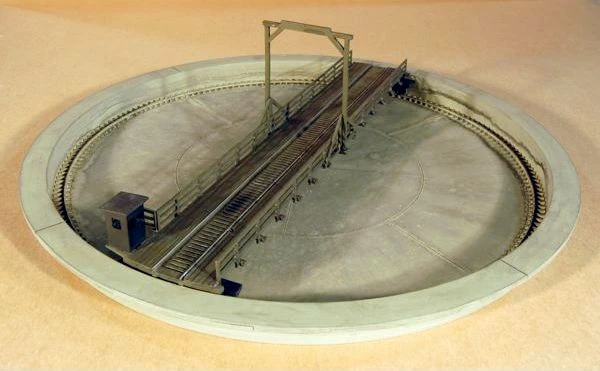

Custom Model Railroads HO 030 90′ Turntable Kit

Turntables are available in HO scale, and in various lengths and diameters (see chart photo and measurements below). These kits are designed to operate with great reliability. We began manufacturing these turntable kits after our own frustration in finding a reliable turntable that we could actually drive a locomotive onto, turn and drive off. All parts are milled to the highest standard for a perfect fit. The all metal pit rail is pre-curled and ready for installation. High performance sealed wheel bearings are used on the trucks and a sintered oil-impregnated bronze bushing is used for the center shaft. These provide excellent reliability and operation.

We offer a manually controlled slow motion geared motor and a motor mount kit by CMR. If you choose to use the CMR Motor Kit, then you will also need to purchase the CMR Motor Mounting Kit. This allows you to mount the motor directly to the bottom of the turntable pit (each item sold separately).

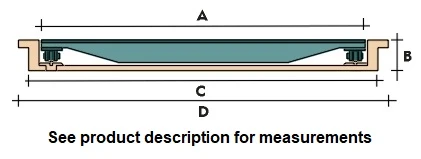

90′ turntable size (A x B x C x D): 12.375″ x 1.0625″ x 13″ x 14″

HO turntables feature:
Tab and slot construction for easier assembly
Instructions with step by step assembly
Laser cut acrylic parts
Sealed wheel bearings
Bronze oil impregnated axle bushing
Auto reverse track polarity
Bridge track power via a split rail system
Lift off removable bridge
Drop in construction for easy installation
