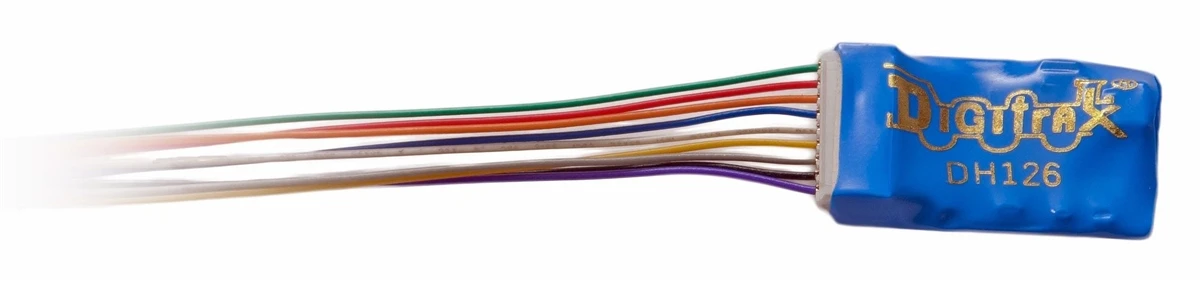

Digitrax HO DH126D 1.5 Amp Economy Wired Mobile Decoder

Digitrax HO DH126D 1.5 Amp Economy Wired Mobile Decoder fits many HO scale locomotives, measures .672″ x 1.074″ x .259″ (17.08mm x 27.285mm x 6.6mm), ho scale mobile decoder, Digitrax Easy Connect 9 Pin Harness, 1.5 Amp/2 Amp Peak, and 2 FX3 functions at .05 Amp. FX3 Function Outputs For Prototypical Lighting Effects and On or Off Control:
Constant Brightness Lighting WIth Directional Or Independent Control
Realistic Effects Like Ditch Lights, Mars Lights, Strobes, and Many More
FX3 and Standard Function Qualifiers Operate Functions Based On Direction, F0 On or Off, Direction and F0, and Whether Loco Is Moving
Function Remapping For Custom Function Setup
Master Light Switch Turns Off All Lights and Functions With One Keystroke
Advanced Consist Functions Controls
Digitrax LogoMotion System Which Is Where Your Locomotives Look Like the Real Thing. The Digitrax LocoMotiion System Makes Them Run Like The Real Thing
Torque Compensation For Smooth As Silk Silent Operation
128 Speed Step Operation (14 Or 28 Steps Can Also Be Used)
Momentum With Acceleration and Deceleration
Normal Direction of Travel is User Selectable
Switching Speed Feature For Easier and Faster Access to Yard Speeds
3 Step Speeds Tables at Start, Mid, and Max Voltage for Custom Control
28 Step Speed Tables With 256 Level Resolution For Precise Control
Program CV’s Using any Digitrax Compatible Control Sytem Without Having to Buy Any Extra Equipment
Digitrax Easy Connect 9 Pin Harness
Series 6 Decoder Features
Works With PX112-2 Power Xtender
Configurable FX3 Pulse Function Available On All Function Outputs
2 Digit and 4 Digit Addressing
Basic, Advanced, and UniVersal Consisting
SuperSonic Motor Drive For Silent Operation
Direct Mode Programming
Decoder Reset DV With or Without Speed Table Reset
Transponder Equipped Ready For Transponding on Your Layout
Motor Isolation Protection Helps Prevent Damage to Your Decoder
DCC Compatible
FCC Part 15, Class B RFI Compliant
Digitrax No Worries Warranty
