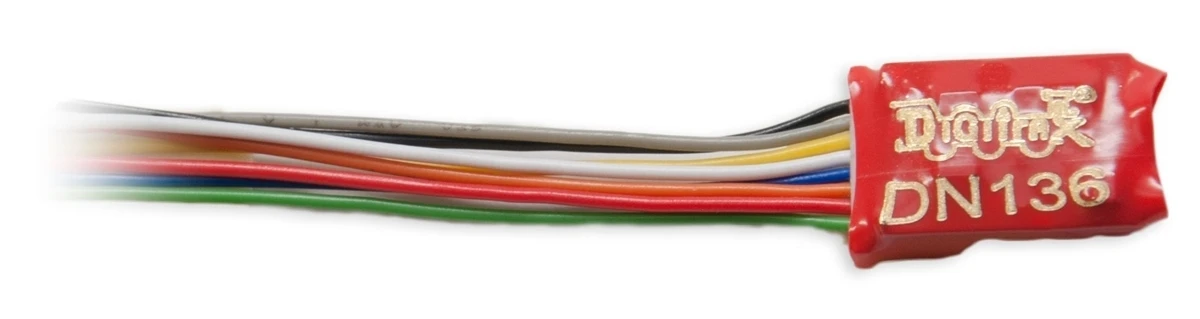

Digitrax N/HO DN136D Wire-in Mobile Decoder (3 FX3 Functions, 0.5 Amp)

Wired Motor and Function Decoder that fits many N and HO Scale Locos.

Size: .55″ x .404″ x .2″ 13.9mm x 10.3mm x 5 mm
N/HO Scale
1.0 Amp/1.5 Amps Peak3 FX3 Functions, 0.5 Amp

FX3 Function outputs for prototypical lighting effects and on/off control:
Constant Brightness Lighting with directional or independent control.
Optimized selectable LED or incandescent lamp operation
Realistic Effects like Ditch lights, Mars lights, strobes, and many more
Configurable Pulse Function available on all function outputs
FX3 and Standard Function Qualifiers operate functions based on direction, F0 on or off, direction and F0, and whether loco is moving
Function Mapping for custom function setup
Master Light Switch turns off all lights and functions with one keystroke
Advanced Consist Function Controls

Digitrax LocoMotion System-Your locomotives look like the real thing. The Digitrax LocoMotion System makes them run like the real thing, too!
Scaleable Speed Stabilization (Back EMF) with simple setup and 256 level resolution
Torque Compensation
128 Speed Step operation (14 or 28 steps can also be used)
Momentum with acceleration and deceleration
Normal Direction of Travel is user selectable
Switching Speed feature for easier and faster access to yard speeds
3 Step Speed Tables set start, mid and max voltage for custom control
28 Step Speed Tables with 256 level resolution for precise control
Program CVs using any Digitrax Compatible Control system without having to buy any extra equipment
2 Digit and 4 Digit Addressing
Basic, Advanced and UniVersal Consisting
SuperSonic motor drive for silent operation
Direct mode programming
Decoder Reset CV with or without speed table reset
Transponder Equipped ready for transponding on your Layout
Motor Isolation Protection helps prevent damage to your decoder
Automatic Analog Mode Conversion when running on DC layout
Decoder Lock for individual programming of multiple decoders in one loco
Digitrax “No Worries” Warranty.
