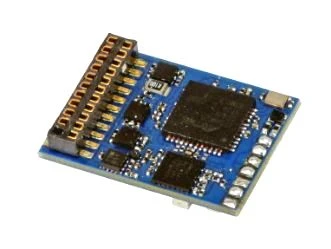

ESU HO/O 58210 LokSound 5 Fx DCC/MM/SX/M4 “Generic” Sound Decoder, 8-Pin NEM652
Original price was: $64.99.$45.49Current price is: $45.49.
- Secure Shopping with Safe Payments
- Unbeatable Quality, Unbeatable Value
- Fast, friendly, always here to help.
- The quality solution for all your needs.
Decoder Specifications:
Size: 21.5 mm x 15.5 mm x 6.5 mm (0.85 in x 0.61 in x 0.26 in)
Connection: NEM652 8-pin Wired Plug
Motor Rating: NA – Function and Sound only
BEMF: NA
Functions: Up to 12 amplified outputs for special functions (total: Up to 15 outputs)
Sound:
32-bit processor
Digital class “D” amplifier with up to 13 W power
10 sound channels can be played simultaneously
Each channel in 16-bit resolution and 31250 kHz sample rate
Nominal Speaker Impedance: 4 – 32 Ohm
Protocol: DCC with RailComPlus, M4, Motorola and Selectrix
Additional Features:
Updatable with ESU-LokProgrammer
Two-stage heavy load simulation
3 new, individually adjustable brake controllers
Connection interface for RC servos and SUSI modules
Optional PowerPack storage capacitor connections
Includes 11×15 mm “sugar cube” loudspeakers with customizable sound capsule set
