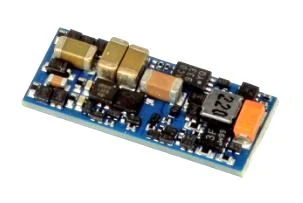

ESU N 58923 LokSound 5 Nano DCC “Generic” Sound Decoder, Hardwire

LokSound 5 Nano NMRA DCC Sound Decoder – Hardwire

Decoder Specifications:
Size: 19.6 mm x 8.5 mm x 3.2 mm (0.77 in x 0.34 in x 0.13 in)
Interface: NEM662 Next18 Integral Connector to Hardwire
Motor Rating: 0.75 A Nominal
BEMF: Motor control with 50 kHz clock frequency
Functions: Up to 6 amplified outputs for special functions (total: Up to 9 outputs)
Sound:
32-bit processor
Digital class “D” amplifier with up to 13 W power
10 sound channels can be played simultaneously
Each channel in 16-bit resolution and 31250 kHz sample rate
Nominal Speaker Impedance: 4 – 32 Ohm
Protocol: DCC with RailComPlus
Additional Features:
Updatable with ESU-LokProgrammer
Two-stage heavy load simulation
3 new, individually adjustable brake controllers
Connection interface for RC servos and SUSI modules
Optional PowerPack storage capacitor connections
Includes 11×15 mm “sugar cube” loudspeakers with customizable sound capsule set
